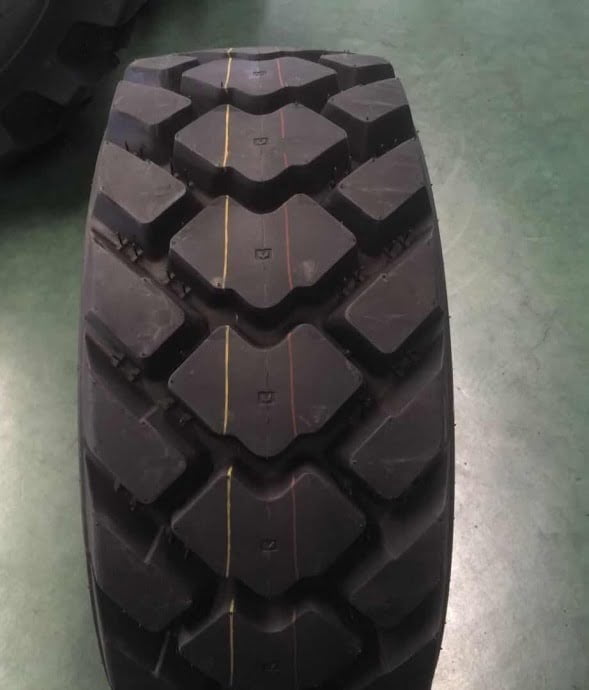

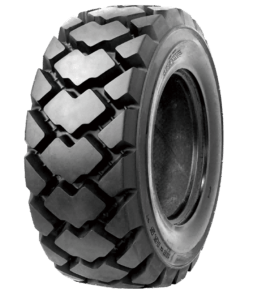

L5 XDD

L5 XDD Features:
* X’tra deep tread, extra thick sidewalls provide exceptional durability and minimize the risk of punctures & accidental damages
* Superior carcass strength allows the tire to bear extreme heavy load
* Long life

Specifications:

L5 XDD

Tyre Size Ply Rating Tyre Type Tread Depth Section Width Overall Diameter Max. Speed Infl. Pressure Max. Load Standard Rim
(mm) (32nds) mm inch mm inch km/h mph kPa psi kg lbs
10-16.5 10 TL 35 44.1 268 10.6 790 31.1 10 5 520 75.4 2135 4697 8.25
12-16.5 12 TL 35 44.1 315 12.4 836 32.9 10 5 550 79.8 2865 6303 9.75
14-17.5 14 TL 36.5 46 358 14.1 932 36.7 10 5 550 79.8 3875 8525 10.5

Description :

Company introduction

Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:

– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)

– Transportation (Trucks, Buses & Trailers)

– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)

– Material Handling (Reach stackers & Forklifts)

As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.

LET TNR BRING YOU MORE!
