GIANT OTR TIRES of Premium brands

Table of Contents

Giant Off-the-Road tires

1. What is a Giant OTR tire?

OTR is short for off the road tires, while Giant OTR tires are those OTR tires of size range from 49inch to 63inch.
Sizes:
27.00R49、30.00R51、33.00R51、36.00R51、37.00R57、40.00R57、46/90R57、50/80R57、53/80R63、55/80R57 & 59/80R63
Usually, the same size in bias type is also available. For example, 27.00-49, 33.00-51 etc.

2. Major manufacturers

MICHELIN
GOODYEAR
BRIDGESTONE
YOKOHAMA
TITAN
HILO
MAXAM
ZC RUBBER

Michelin OTR Giant size pattern list

Size

XDR®3

XD® Mineworks

XD® GRIP

XVC

XDR®

XDR®+

XDT

XDC

XDR®3+

XDR®250

XDR®250+

XDR®3 Extra Load

XDR®3+ EXTRA LOAD

XDR®2S

27.00R49

Y

Y

Y

Y

30.00R51

Y

Y

33.00R51

Y

Y

Y

36.00R51

Y

Y

37.00R57

Y

40.00R57

Y

Y

Y

50/80R57

Y

Y

50/90R57

Y

Y

Y

53/80R63

Y

Y

Y

Y

59/80R63

Y

Y

Y

Y

27.00R49	XDR®3	XD® Mineworks	XD® GRIP	XVC
30.00R51	XDR®	XDR®+
33.00R51	XDR®3	XDT	XDC
36.00R51	XDR®	XDC
37.00R57	XDR®3
40.00R57	XDR®3	XDC	XDR®3+
50/80R57	XDR®250	XDR®250+
50/90R57	XDR®3	XDR®	XDR®3+
53/80R63	XDR®3	XDR®3+	XDR®3 Extra Load	XDR®3+ EXTRA LOAD
59/80R63	XDR®3	XDR®3+	XDR®3 Extra Load	XDR®2S

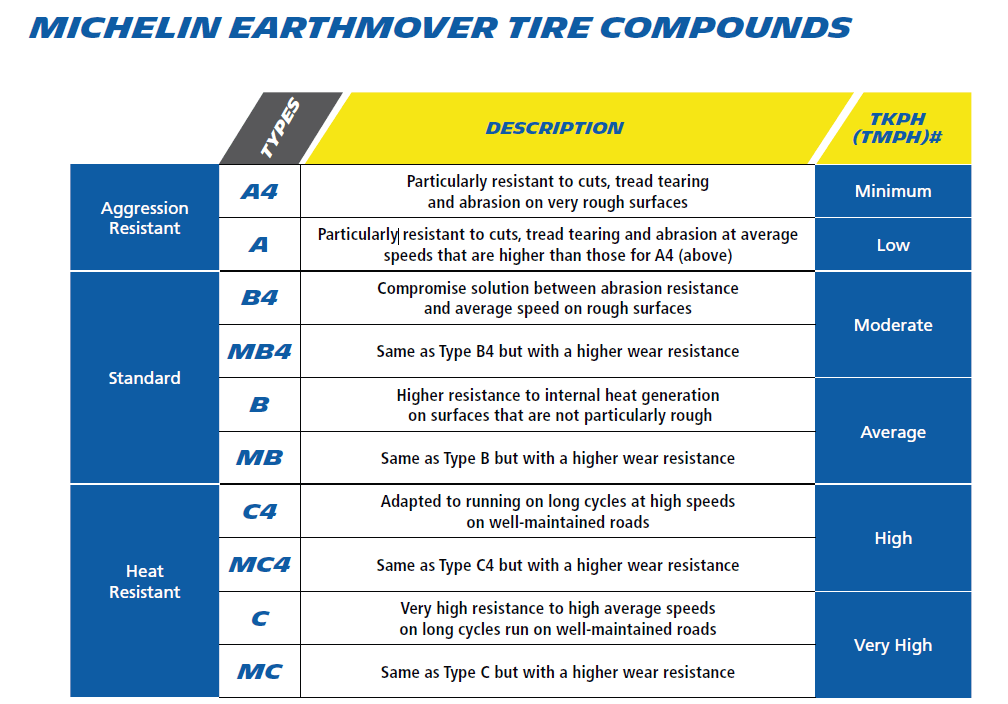

Michelin Tire Compound information:

	Types	Description	TKPH (TMPH)
Aggression Resistant	A4	Particularly resistant to cuts, tread tearing and abrasion on very rough surfaces	Minimum
	A	Particularly resistant to cuts, tread tearing and abrasion at average speeds that are higher than those for A4 (above)
Standard	B4	Compromise solution between abrasion resistance and average speed on rough surfaces	Moderate
	MB4	Same as Type B4 but with a higher wear resistance
	B	Higher resistance to internal heat generation on surfaces that are not particularly rough	Average
	MB	Same as Type B but with a higher wear resistance
Heat Resistant	C4	Adapted to running on long cycles at high speeds on well-maintained roads	High
	MC4	Same as Type C4 but with a higher wear resistance
	C	Very high resistance to high average speeds on long cycles run on well-maintained roads	Very High
	MC	Same as Type C but with a higher wear resistance

Goodyear OTR Giant size pattern list

Size

GP-4B

RH-4A+

RL-4A

RL-4H

RL-4J

RL-4JII

RM-4A+

RT-4A+

RL-3J(E3)

RL-4M+

RM-4B+

RM-3A(E3)

27.00R49

Y

Y

Y

Y

Y

Y

Y

Y

30.00R51

Y

Y

33.00R51

Y

Y

Y

Y

Y

36.00R51

Y

Y

37.00R57

Y

Y

Y

40.00R57

Y

Y

46/90R57

Y

Y

Y

53/80R63

Y

Y

59/80R63

Y

Y

Y

27.00R49	GP-4B	RH-4A+	RL-4A	RL-4H	RL-4J	RL-4JII	RM-4A+	RT-4A+
30.00R51	RL-4H	RL-4JII
33.00R51	GP-4B	RL-4H	RM-4A+	RL-3J(E3)	RL-4M+
36.00R51	RL-4H	RL-4JII
37.00R57	RL-4H	RM-4A+	RL-4M+
40.00R57	RH-4A+	RM-4B+
46/90R57	RH-4A+	RM-4A+	RM-4B+
53/80R63	RM-4A+	RM-4B+
59/80R63	RH-4A+	RM-4A+	RM-3A(E3)

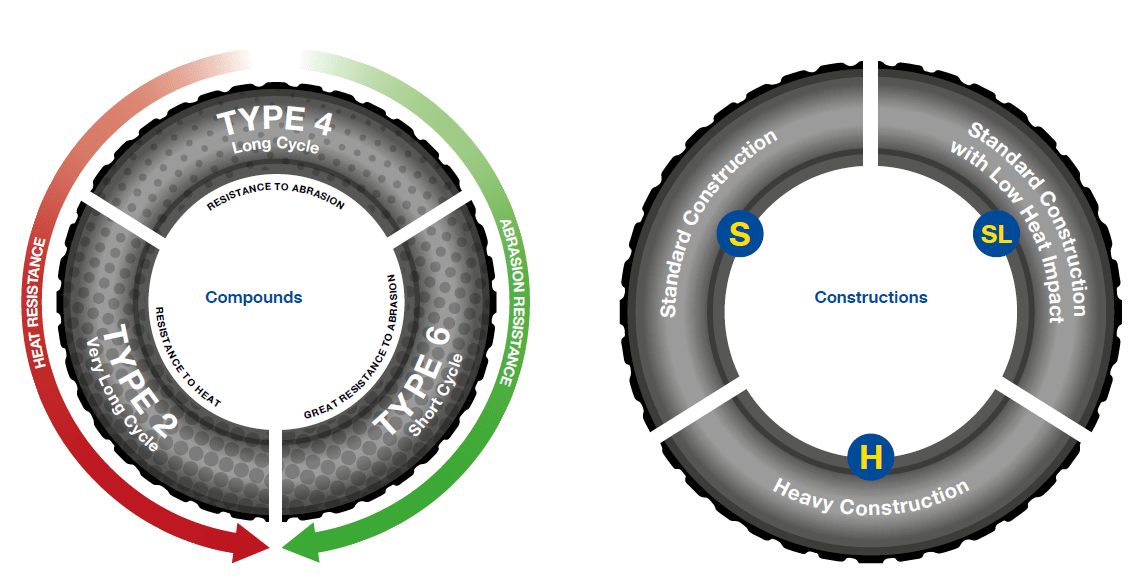

Goodyear Tire Compound information:

Compound code	2	3	4	5	6
Compound description	least cut-resistance	in-between			most cut-resistance
	most heat resistance	in-between			least heat resistance

Construction code	Construction description
S	Standard
H	Reinforced (Heavy Duty)
SL	Standard with low heat impact

Bridgestone OTR Giant size pattern list

Size

VHS

VFT

VMT

VRF

VMTS

VMTP

VZTS

VZTP

VELS

VRLS

VREP

VRDP

VRPS

VRQP

VREV

VZTB

VRWP

27.00R49

X

X

X

X

X

X

X

30.00R51

X

X

33.00R51

X

X

X

X

X

36.00R51

X

X

37.00R57

X

X

42/90R57

X

X

40.00R57

X

X

X

X

X

46/90R57

X

X

X

X

X

X

50/80R57

X

50/90R57

X

53/80R63

X

X

59/80R63

X

X

X

27.00R49	VFT	VMTS	VMTP	VRLS	VREP	VRDP	VREV
30.00R51	VMTS	VMTP	VRLS	VREP	VRDP	VREV
33.00R51	VMT	VMTP	VRLS	VRDP	VRPS
36.00R51	VHS	VRLS
37.00R57	VZTS	VRLS
42/90R57	VRDP	VRPS
40.00R57	VZTS	VELS	VRDP	VRPS
46/90R57	VZTP	VRDP	VRPS	VREV	VZTB	VRWP
50/80R57	VREV
50/90R57	VRPS
53/80R63	VRPS	VREV
59/80R63	VRF	VRPS	VREV

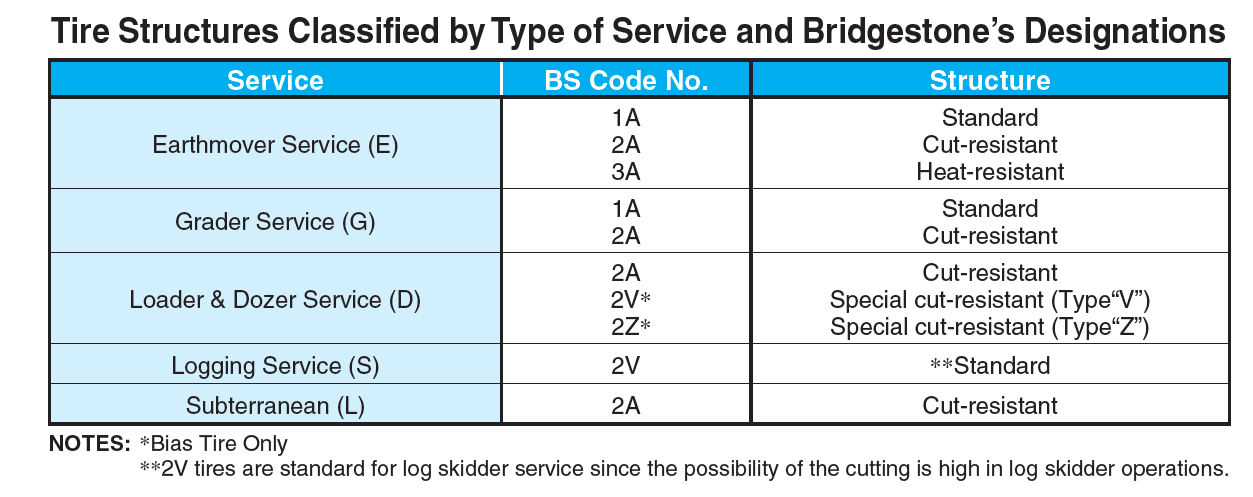

Bridgestone Tire Compound information:

Service	BS Code No.	Structure
Earthmover Service (E)	1A	Standard
	2A	Cut-resistant
	3A	Heat-resistant
Grader Service (G)	1A	Standard
	2A	Cut-resistant
Loader & Dozer Service (D)	2A	Cut-resistant
	2V*	Special cut-resistant (Type“V”)
	2Z*	Special cut-resistant (Type“Z”)
Logging Service (S)	2V	**Standard
Subterranean (L)	2A	Cut-resistant

NOTES: *Bias Tire Only
**2V tires are standard for log skidder service since the possibility of the cutting is high in log skidder operations.

3. What machines use GIANT OTR?

For example,
27.00R49 is for
BELAZ 7549
CATPILLAR 777
KOMATSU 785
TEREX TR100

Make	Model	Standard Tire	Optional Tire
Caterpillar	777	27.00R49
Caterpillar	785	33.00R51	36.00R51
Caterpillar	789	37.00R57	40.00R57
Caterpillar	793	40.00R57	46/90R57 50/80R57
Caterpillar	793F	40.00R57
Caterpillar	794AC	53/80R63
Caterpillar	796AC	59/80R63
Caterpillar	797F	59/80R63
Caterpillar	798AC	59/80R63
Belaz	75570、75571	27.00R49
Belaz	75581、75583、75585、75589、7558B、7558D、7558F	27.00R49
Belaz	7513、75131、75135、75137、75139、7513A、7513B、7513D	33.00R51
Belaz	75170、75172、75173、75174	36.00R51
Belaz	75180、75182	37.00R57
Belaz	75310、75311、75312、75313、75315、75318、75319	40.00R57; 46/90R57
Belaz	75320	53/80R63
Belaz	75602、75603、75604、75605	59/80R63
Komatsu	HD785-8	27.00R49
Komatsu	HD1500-8E0	33.00R51
Komatsu	730E-10	37.00R57	40.00R57
Komatsu	830E-5	50/80R57
Komatsu	860E-1K	50/80R57	50/90R57
Komatsu	930E-4SE	53/80R63
Komatsu	930E-5SE	53/80R63
Komatsu	960E-2K	53/80R63
Komatsu	980E-5	59/80R63
Hitachi	EH5000AC-3	53/80R63
Hitachi	EH3500AC-3	37.00R57	40.00R57
Hitachi	EH4000AC-3	46/90R57	40.00R57、50/80R57

For more information, please visit:
tire-size-fitting-for-your-equipment

4. Where are these tires used?

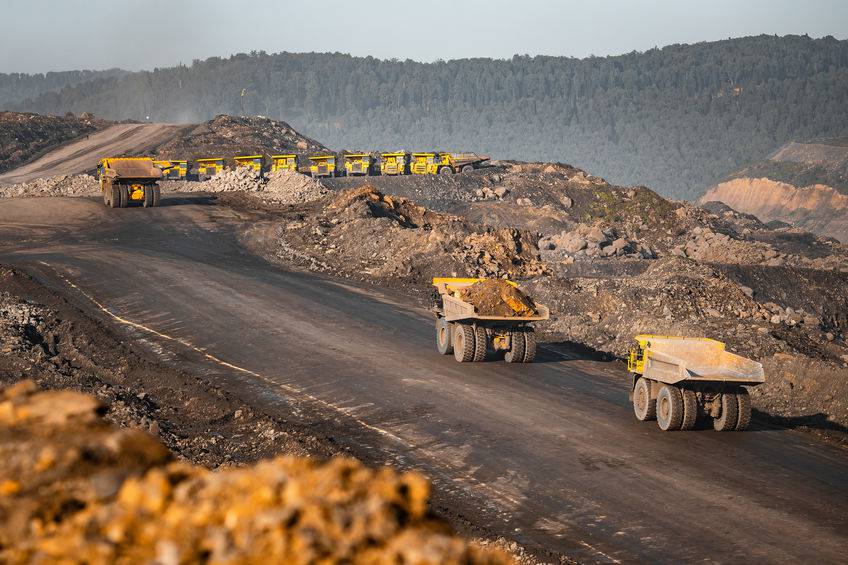

These giant tires are usually used on the open-pit mining sites.
What is a open-pit mining site?



Open-pit mining, also known as opencast mining, is a surface mining technique that extracts minerals from an open pit in the ground. Open-pit mining is the most common method used throughout the world for mineral mining. This surface mining technique is used when mineral or ore deposits are found relatively close to the surface of the earth. Open-pits are sometimes called ‘quarries’ when they produce building materials and dimension stone.

Materials commonly extracted from open-pit mines include:

Bitumen     Clay     Coal    Copper     Coquina   Diamonds      Iron
Gold       Gravel and Bedrock     Granite     Gritstone    Gypsum
Limestone    Marble     Molybdenum    Silver     Uranium    Phosphate

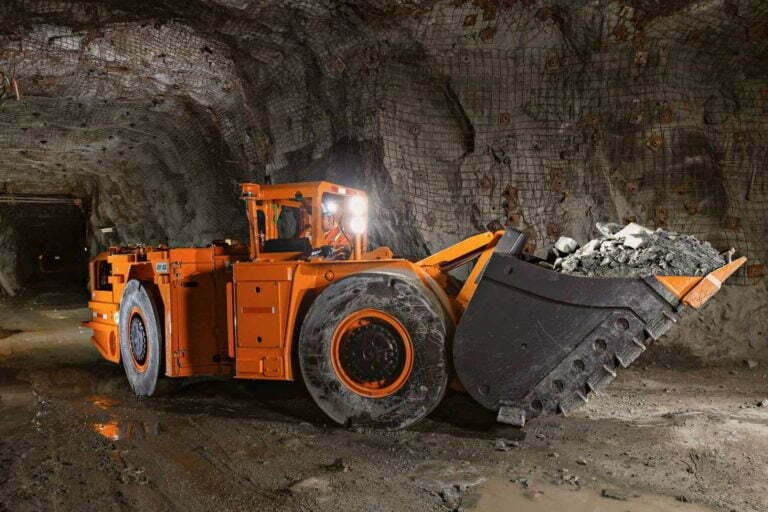

Contrary to Open pit mining, is the undergroud mining.

Underground mining is the process of extracting minerals, rocks and other industrial materials other than oil, coal and gas from the earth through the development of shafts and entries from the surface to the deposits or seam before recovering the products and using underground extraction methods.

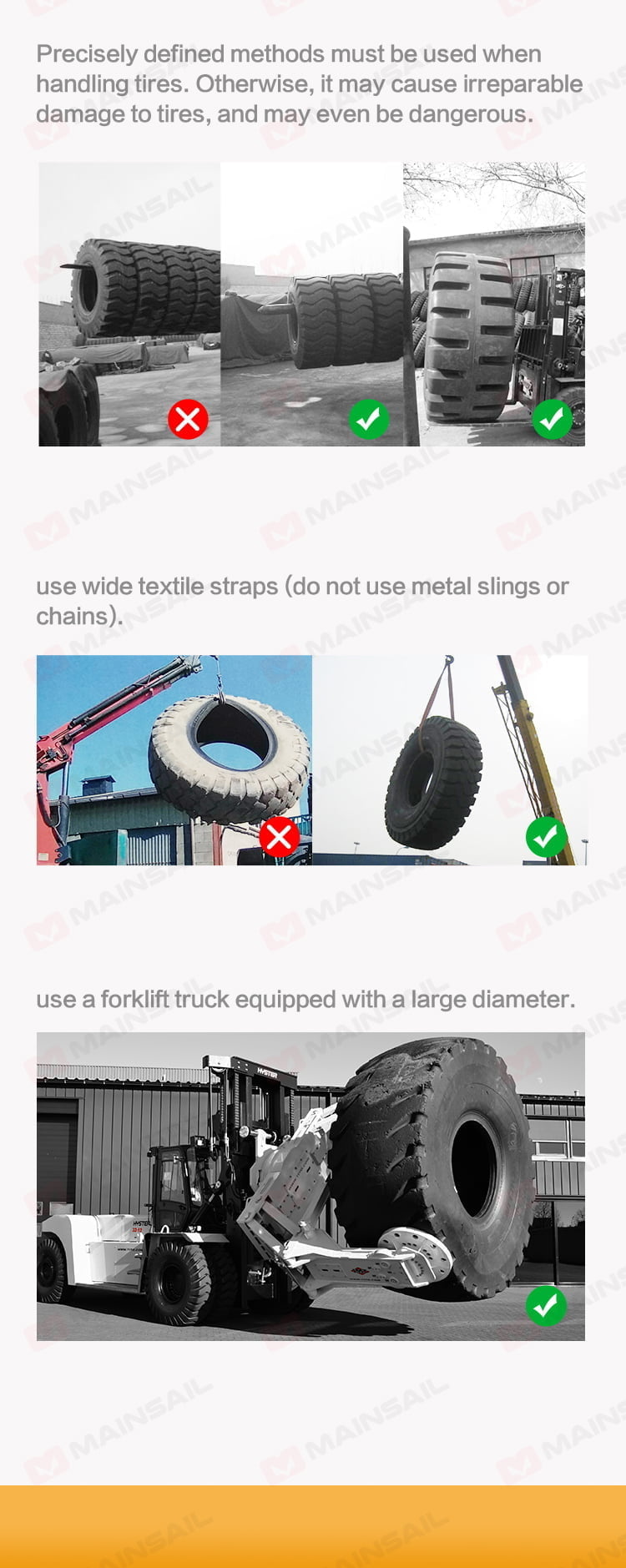

1. 5. How to Handle (load/unload) GIANT OTR TIRES?

Precisely defined methods must be used when handling the tires. Failure to use these methods may cause irreparable damage to tires and may even be dangerous. The bead is a sensitive part of the tire, and if it is damaged during handling operations, this may lead to premature scrapping of the tire.

To limit the risks:
Tires should preferably be handled using the appropriate equipment for this type of work: forklift truck, mechanical loader or crane equipped with a tire handler or textile straps; lift the tire by the tread.

If there is no other option than to lift and handle the tire by the beads, the following must be used:

• 1. preferably wide textile straps (do not use metal slings or chains as these may damage the beads);
• 2. or, if need be, a forklift truck equipped with a large diameter boom attachment. In this case, care must be taken not to damage the sidewalls!
•
