A Glance at all Chinese Manufactuers of Giant Earthmover Tires

1. Giant Earthmover tires

Giant earthmover tires are often refered as tire rim diameter more than 49", typical sizes are:
27.00R49、30.00R51、33.00R51、36.00R51、37.00R57、40.00R57、46/90R57、50/80R57、53/80R63、55/80R57 & 59/80R63
for bias type, the sizes are , 27.00-49, 30.00-51, 33.00-51, 36.00-51, 37.00-57, 40.00-57.



2. Major Chinese  manufacturers

ADVANCE
AEOLUS
HILO
HAIAN
MAXAM
TIANLI
TRIANGLE
ZC RUBBER

3. Size and Pattern List

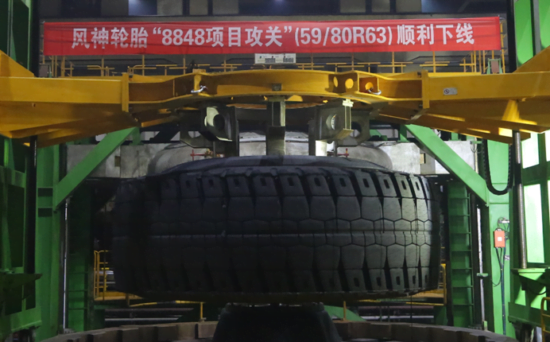

Aeolus

aeolus giant tires

SizeStar ratingTRA CodePattern CodeTypeCompoundRIMO.D.O.W.LI/SSOTDTKPH
(mm)(mm)(mm)
27.00R49**E-4AE410TLB19.50/4.02712740223B76560
27.00R49**E-4AE410TLA19.50/4.02712740223B76392
27.00R49**E-4AE46TLB19.50/4.02700740223B73600
27.00R49**E-4AE46TLA19.50/4.02700740223B73436
33.00R51**E-4AG01TLB24.00/5.03056925235B89846
33.00R51**E-4AG01TLA24.00/5.03056925235B89651
46/90R57**E-4AG01TLB29.00/6.036001160252B971197
46/90R57**E-4AG01TLA29.00/6.036001160252B97923
53/80R63**E-4AG02TLB36.00/5.0 38201350261B1001500
59/80R63**E-4AG02TLB44.00/5.040201500268B1001700

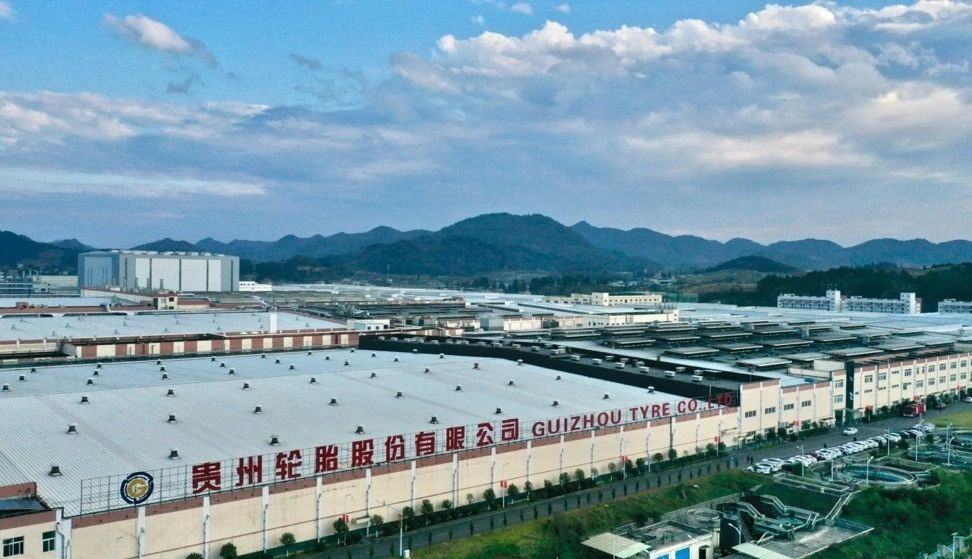

Advance

advance tire factory

SizePatternStar RatingTRA CodeTread Depth
(mm)
TypeStandard Rim
(Rim Width&Flange)
Diameter
(mm)
Section Width
(mm)
Max Speed
(km/h)
Max Load
(kg)
27.00R49APR**E468TL19.5/4.026887105027250
27.00R49ART**E476TL19.5/4.027047405027250
33.00R51ARS**E485TL24.00/3.530509105038750
27.00-49E-4J**E465TL19.5/4.027007355025000
33.00-51E-4J**E488TL24.00/3.530608945035500

HILO


SizePatternStar RatingLoad IndexTRA CodeTread Depth
(mm)
TypeStandard Rim
(Rim Width&Flange)
Diameter
(mm)
Section Width
(mm)
Max Load
(kg)
Stander Pressure
(bar)
Max Speed
(km/h)
27.00R49HLG01**223E-458TL19.50/4.02702737272507.050
27.00R49HLG03**223E-461TL19.50/4.02702737272507.050
27.00R49B04S**223E-476TL19.50/4.02690734272507.050
30.00R51HLG05**230E-464TL22.00/4.52904823335007.050
30.00R51HLG06**230E-464TL22.00/4.52904923335007.050
33.00R51HLG01**235E-480TL24.00/5.03061894387507.050
33.00R51HLG06**235E-470TL24.00/5.03061894387507.050
33.00R51B04S**235E-494TL24.00/5.03060920387507.050
36.00R51HLG01**241E-488TL26.00/5.03233988462507.050
36.00R51HLG06**241E-478TL26.00/5.03233988462507.050
40.00R57HLG03**250E-480TL29.00/6.035201095600007.050
46/90R57HLG04**252E-4100TL29.00/6.035641180630007.050

HAIAN

haian factory

27.00R49HA71840.00R57HA369
27.00R49HA16240.00R57HA710
27.00R49HA16340.00R57HA566
27.00R49HA71040.00R57HA718
30.00R51HA16846/90R57HA162
33.00R51HA16246/90R57HA368
33.00R51HA71046/90R57HA710
36.00R51HA16846/90R57HA569
36.00R51HA16250/80R57HA162
37.00R57HA16250/80R57HA569
37.00R57HA16350/80R57HA993
37.00R57HA16953/80R63HA688
40.00R57HA16255/80R57HA860
40.00R57HA36859/80R63HA686

MAXAM

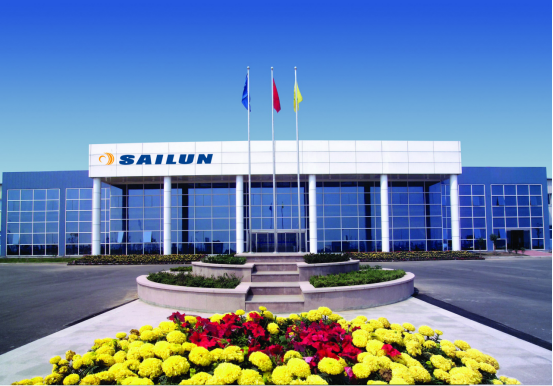

SAILUN TIRE

Size/PatternMS401MS401+MS402MS403MS403+MS403proMS412MS440MS440 proMS453
27.00R49
33.00R51
36.00R51
40.00R51
37.00R57
46/90R57
50/80R57
59/80R63
53/80R63

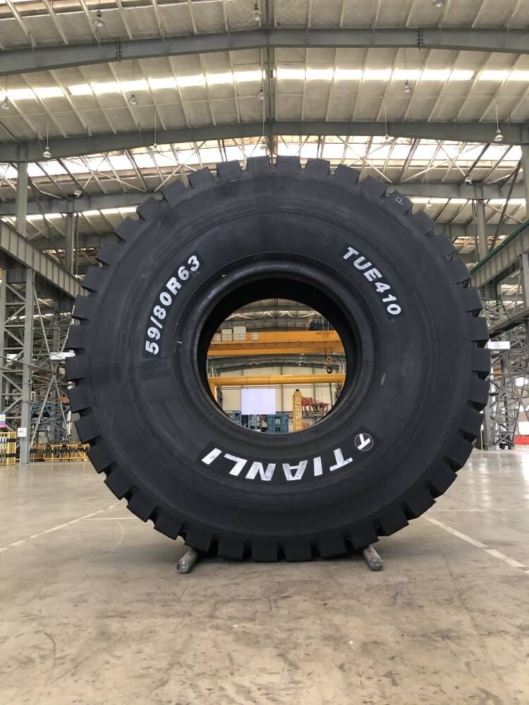

TIANLI



Tianli
27.00R49TUE402
33.00R51TUE402
27.00R49TUE406
27.00R49TUE400
30.00R51TUE400
33.00R51TUE400
36.00R51TUE400
37.00R57TUE400
40.00R57TUE400
27.00R49TUE400 PRO
46/90R57TUE410
50/80R57TUE410
59/80R63TUE410

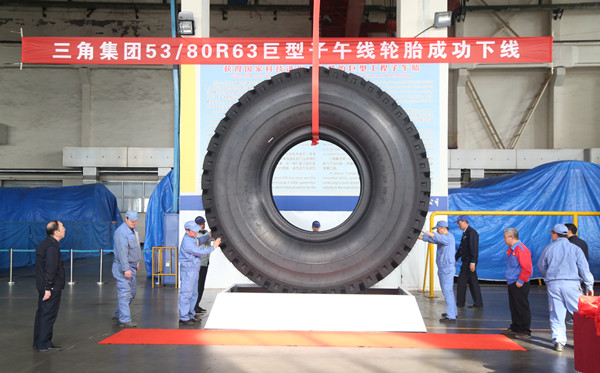

TRIANGLE

TRIANGLE TIRE

TIRE SIZELOAD SYMBOLTREAD DEPTH [IN]RIM WIDTH & FLANGEOVERALL WIDTH [IN]OVERALL DIAMETER [IN]TT/TLTMPH [T1]TMPH [T2]TMPH [T3]Pattern
33.00R51★★10524.00/5.035.2120.5TL239.75284/356/394476TL588
36.00R51★★12626.00/5.038.9127.28TL332.225449/562/620667.875TB599
37.00R57★★12627.00/6.040135.35TL376.75469/589/651736.375TB599
40.00R57★★12629.00/6.043.2141.48TL411575/719/791815.15TB599
46/90R57★★12629.00/6.046141.48TL428.125599/750/825890.5TB599
27.00R49★★9319.50/4.029106.36TL216236/298/329384TB526S

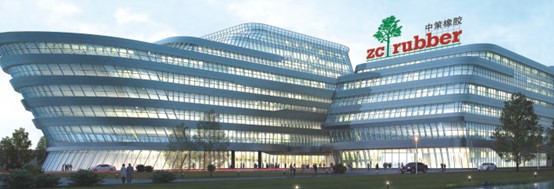

ZC rubber

zc rubber

SIZE

CB791

CB785

CB788

27.00R49

Y

Y

Y

33.00R51



Y

Y

40.00R57



Y



4. What machines use GIANT OTR?

For example,
27.00R49 is for
BELAZ 7549
CATPILLAR 777
KOMATSU 785
TEREX TR100

MakeModelStandard TireOptional Tire
Caterpillar77727.00R49
Caterpillar78533.00R5136.00R51
Caterpillar78937.00R5740.00R57
Caterpillar79340.00R5746/90R57 50/80R57
Caterpillar793F40.00R57
Caterpillar794AC53/80R63
Caterpillar796AC59/80R63
Caterpillar797F59/80R63
Caterpillar798AC59/80R63
Belaz75570、7557127.00R49
Belaz75581、75583、75585、75589、7558B、7558D、7558F27.00R49
Belaz7513、75131、75135、75137、75139、7513A、7513B、7513D33.00R51
Belaz75170、75172、75173、7517436.00R51
Belaz75180、7518237.00R57
Belaz75310、75311、75312、75313、75315、75318、7531940.00R57; 46/90R57
Belaz7532053/80R63
Belaz75602、75603、75604、7560559/80R63
KomatsuHD785-827.00R49
KomatsuHD1500-8E033.00R51
Komatsu730E-1037.00R5740.00R57
Komatsu830E-550/80R57
Komatsu860E-1K50/80R5750/90R57
Komatsu930E-4SE53/80R63
Komatsu930E-5SE53/80R63
Komatsu960E-2K53/80R63
Komatsu980E-559/80R63
HitachiEH5000AC-353/80R63
HitachiEH3500AC-337.00R5740.00R57
HitachiEH4000AC-346/90R5740.00R57、50/80R57
