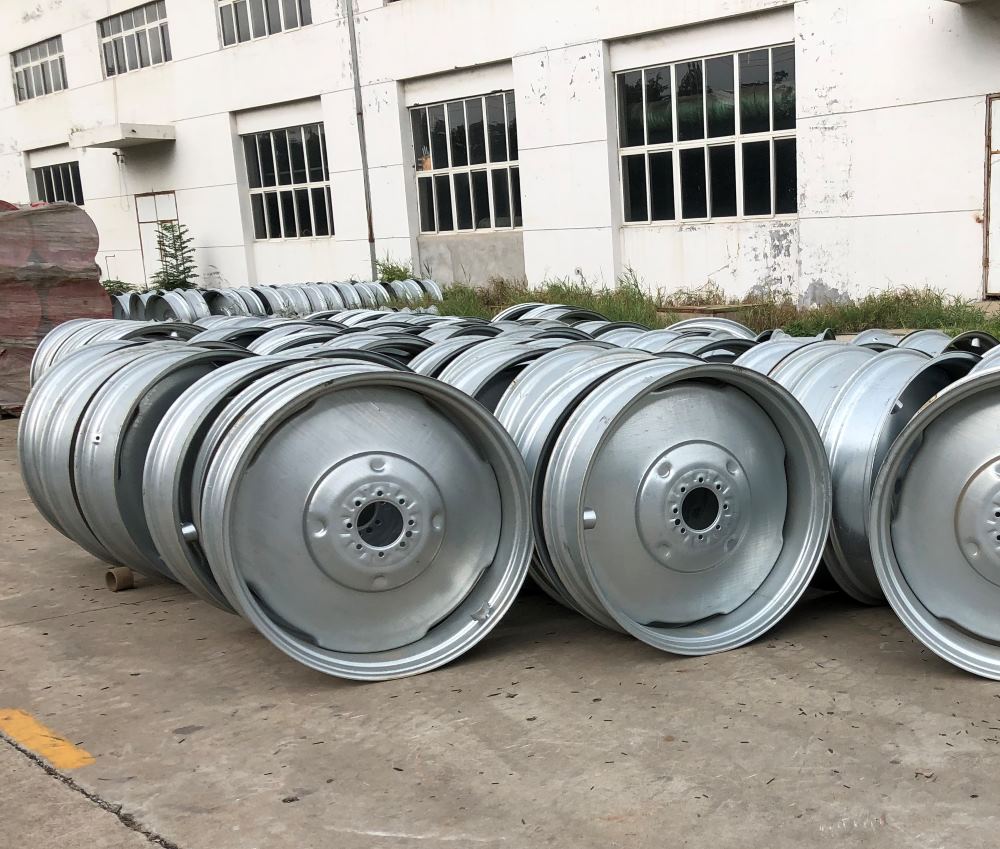

TNR IRRI001 Wheel Rim
Features
>Specially designed for mobile irrigation system equipment
>Valve guard
>Reverse mount available
Surface finish:
Hot Dip Galvanized
Paint
Black
| Wheel Specification | Bolt Hole Dimension | Centre Bore | Thickness | Offset | Tire Size | ||||||
| Number | Diameter | P.C.D | Rim | Disk | |||||||
| (Inch) | (Inch) | (Inch) | mm | inch | mm | inch | mm | inch | |||
| W8x24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 50.8 | 2 | 11.2-24 |
| 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | ||
| W10×24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 50.8 | 2 | 11.2-24 |
| 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | ||
| W12×24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 70 | 2.75 | 13.6-24,14.9-24 |
| 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | ||
| 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 50.8 | 2 | ||
| W15Lx24 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | 16.9-24 |
| W10×38 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 44 | 1.75 | 11.2-38 |
| 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 62 | 2.44 | ||
| W10×38 | 9 | 0.65 | 9.5 | 7.93 | 4 | 0.157 | 6 | 0.236 | 44 | 1.75 | 11.2-38 |
| 8.25X22.5 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | 11-22.5 |
| 8.25X24.5 | 8 | 0.65 | 8 | 6 | 4 | 0.157 | 6 | 0.236 | 0 | 0 | 11-24.5 |
| Item | Irrigation Wheel Rim |
HS Code | 870870 |
| Pattern Code | TNR IRRI01 | Brand | mainsail/ OEM |
| Cord Material | — | Quality Warrantee | 2 years |
| Tube Type | Tube Type/ Tubeless | Delivery | Within 7 Days |
| Condition | New | Origin | Made in China |
| Steel | Best China | Certificate | DOT |
| Equipment | Imported From Japan and German | Manufactuer | TNR international |
