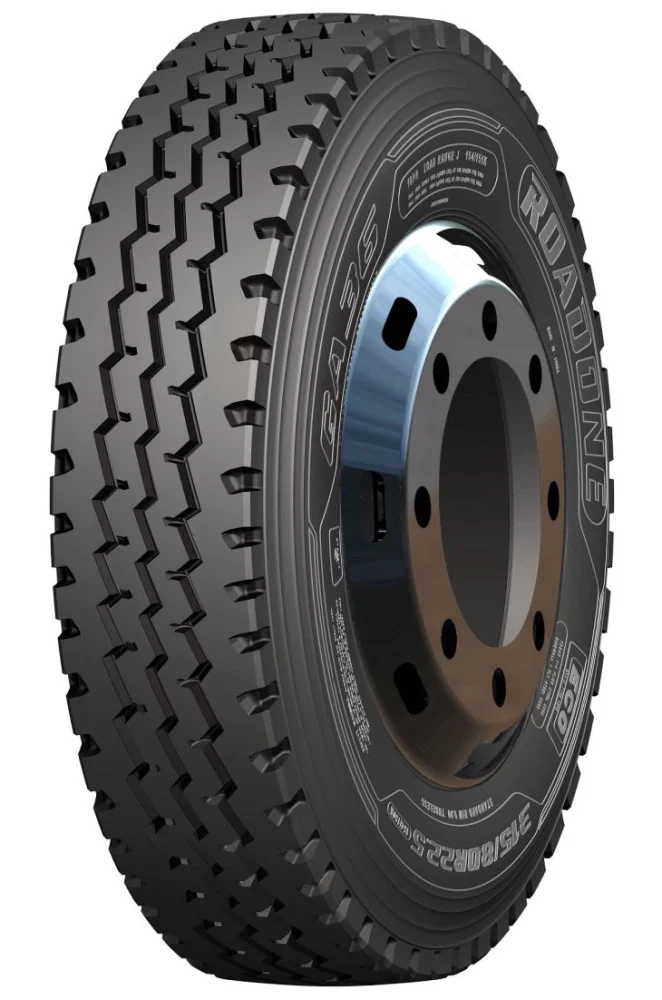

>The unique pattern design of the folding line guarantees good driving performance and anti-biasing performance.
>Low heating tread recipe and heat-dissipating shoulder pattern design, effectively reducing the risk of shoulder quality under heavy load.
>Super high strength steel wire structure can effectively guarantee the bearing capacity of the product.
| Size | Ply Rating | Max. Load (Kg) (Single/Dual) | Load Index (Single/Dual) | Speed Rating | Overall Diameter (mm) | Section Width (mm) | Standard Inflation Pressure (kPa) | Standard Rim (inch) |
| 12.00R20 | 18PR | 3750/3450 | 154/151 | K | 1120 | 315 | 830 | 8.5 |
| 12.00R20 | 20PR | 4000/3650 | 156/153 | K | 1120 | 315 | 900 | 8.5 |
| 11R22.5 | 16PR | 3000/2725 | 146/143 | K | 1053 | 279 | 830 | 8.25 |
| 11R22.5 | 18PR | 3250/3000 | 149/146 | K | 1053 | 279 | 930 | 8.25 |
| 12R22.5 | 16PR | 3350/3075 | 150/147 | K | 1083 | 300 | 830 | 9.00 |
| 12R22.5 | 18PR | 3550/3250 | 152/149 | K | 1083 | 300 | 930 | 9.00 |
| 315/80R22.5 | 18PR | 3750/3450 | 154/151 | K | 1083 | 312 | 830 | 9.00 |
| 315/80R22.5 | 20PR | 4125/3750 | 157/154 | K | 1083 | 312 | 900 | 9.00 |
