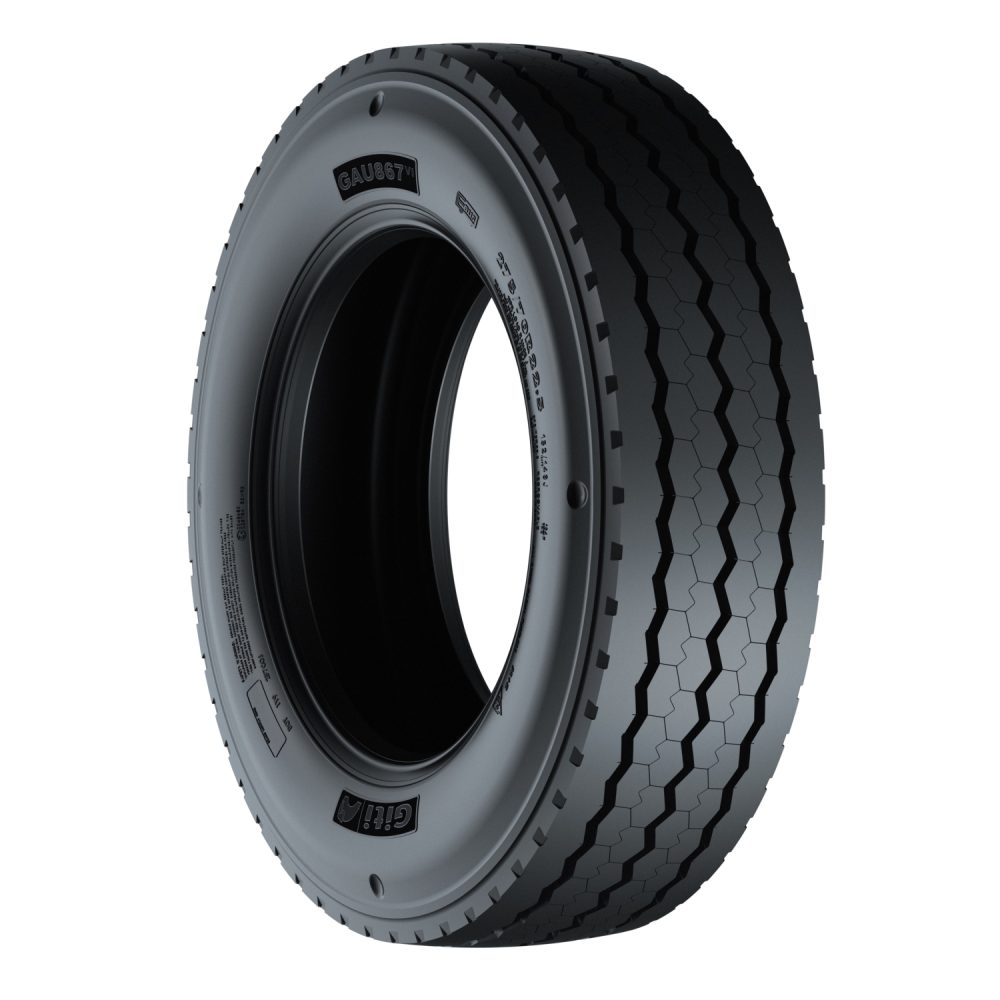

GITI GAU867V1 9R22.5 275/70R22.5

Features

  • Bigger Overall dimension and contact ratio design
  • Optimized footprint design to equalize tread pressure distribution
  • Advanced Equal Force Casing technology
  • Wear resistant compound for urban bus/haulage operation, in high frequency of start, stop and turning use
  • More resilient Zig-Zag groove design and multiple angle sipes
  • FEA Optimized casing designed for retreadability

Specifications

GITI GAU867V1:
Size PR Load Index Speed Rating Standard Rim Maximum Load (mm) Maximum Pressure (kPa) Tread Depth (mm) Outer Diameter (mm) Section Width (mm) TL/TT
kg lbs kPa psi
225/75R16 12 119/116 J 6J 1360/1250 3000/2755 650/650 94/94 13.5 744 233 TL
215/75R17.5 14 128/126 M 6.00 1800/1700 3970/3750 750/750 109/109 13.5 767 211 TL
265/70R19.5 18 143/141 J 7.50 2725/2575 6005/5675 850/850 123/123 15.5 867 262 TL
255/70R22.5 16 140/137 J 8.25 2500/2300 5510/5070 830/830 120/120 17.0 930 255 TL
275/70R22.5 18 152/148J (154/148F) J(F) 7.50 3550/3150 7830/6940 900/900 130/130 18.7 958 276 TL
295/80R22.5 18 154/150 J 9.00 3750/3350 8270/7390 900/900 130/130 18.7 1044 298 TL
9R22.5 14 136/134 M 6.75 2240/2120 4940/4675 830/830 130/130 17.8 974 229 TL
10R22.5 16 144/142 M 7.50 2800/2650 6175/5840 900/900 120/120 17.8 1019 254 TL
11R22.5 16 148/145 J 8.25 3150/2900 6940/6395 850/850 123/123 18.7 1050 279 TL
