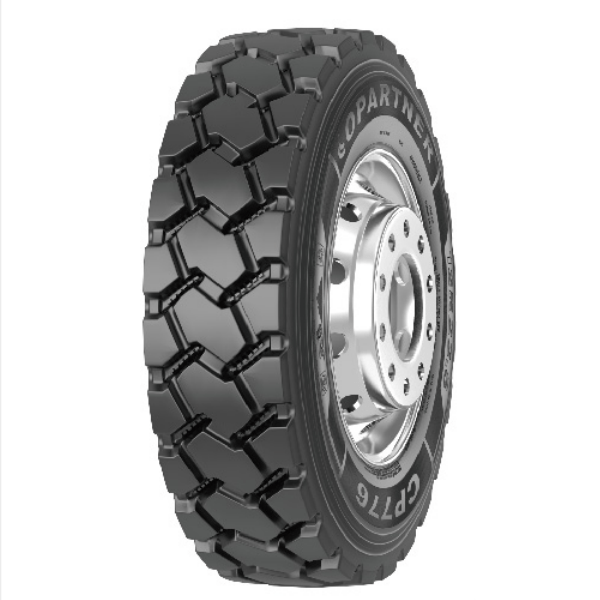

COPARTNER CP776 315/80R22.5

Features

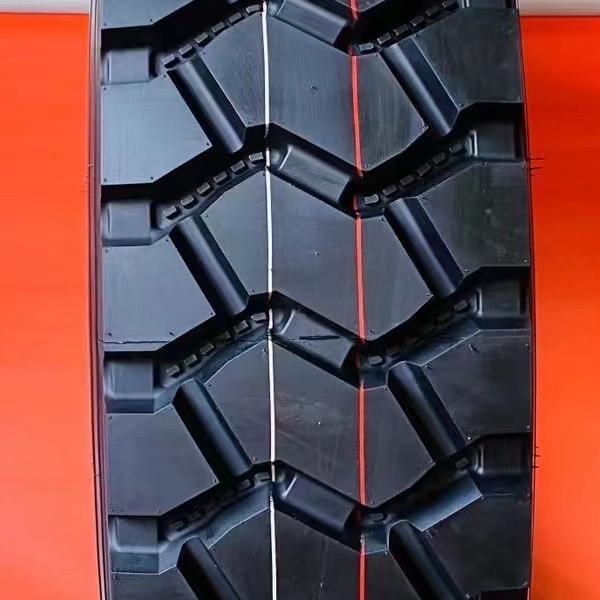

Big block with deep patterns, provides strong gripping stress on bad road; Interlaced reinforcing rib design at the pattern block bottom, prevents groove bottom from being punctured, provides better tear resistance and anti-puncturing

Specifications

315/80R22.5 CP776 COPARTNER BRAND MINING TRUCK TIRE
Sizes Ply Load index Speed level Standard rim Section width (mm) Outer diameter (mm) Design of tread depth (mm)
11R22.5 18 149/146 J 9.00 279 1054 21
12R22.5 18 152/149 J 9.00 300 1085 23
225/80R17.5 16 129/127 F 6.75 226 805 15
315/80R22.5 22 167/161 D 9.00 312 1076 23
