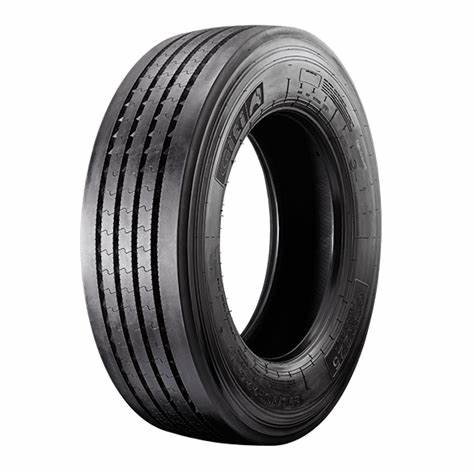

Four belt construction
Widened tread layout
Giti specially-formulated tread compound Resilient four vertical groove and zig-zag bottom design
Mutiple sipes along the side of groove
FEA bead construction optimization concept for bead construction
| Size | PR | Load Index | Speed Rating | Standard Rim | Maximum Load (mm) | Maximum Pressure (kPa) | Tread Depth (mm) | Outer Diameter (mm) | Section Width (mm) | TL/TT | ||
| kg | lbs | kPa | psi | |||||||||
| 11R22.5 | 16 | 148/145 | M | 8.25 | 3150/2900 | 6940/6395 | 850/850 | 123/123 | 15.3 | 1054 | 279 | TL |
| 12R22.5 | 18 | 152/149 | L | 9.00 | 3550/3250 | 7830/7160 | 930/930 | 135/135 | 15.8 | 1085 | 300 | TL |
| 225/70R19.5 | 14 | 128/126 | L | 6.75 | 1800/1700 | 3970/3750 | 760/760 | 110/110 | 13.0 | 811 | 226 | TL |
| 245/70R19.5 | 16 | 136/134 | M | 7.50 | 2240/2120 | 4940/4675 | 830/830 | 120/120 | 14.0 | 839 | 248 | TL |
| 245/70R19.5 | 18 | 141/140 | M | 7.50 | 2575/2500 | 5675/5510 | 860/860 | 125/125 | 14.0 | 839 | 248 | TL |
| 265/70R19.5 | 16 | 140/138 | M | 7.50 | 2500/2360 | 5510/5205 | 790/790 | 115/115 | 14.0 | 867 | 262 | TL |
| 275/70R22.5 | 18 | 148/145 152/148 | M(J) | 8.25 | 3150/2900 | 6945/6395 | 900/900 | 130/130 | 15.0 | 958 | 276 | TL |
| 285/70R19.5 | 16 | 154/149 | M | 8.25 | 3000/2900 | 6610/6395 | 900/900 | 130/130 | 14.5 | 895 | 283 | TL |
| 295/60R22.5 | 18 | 154/150 | L | 9.00 | 3350/3075 | 7390/6780 | 900/900 | 131/131 | 15.0 | 926 | 292 | TL |
| 295/80R22.5 | 18 | 154/148 | M | 9.00 | 3750/3250 | 8270/7160 | 850/850 | 123/123 | 16.5 | 1044 | 298 | TL |
| 305/70R22.5 | 20 | 156/150 | L | 9.00 | 3750/3350 | 8270/7390 | 900/900 | 131/131 | 15.5 | 1000 | 305 | TL |
| 315/60R22.5 | 20 | 154/150 | L | 9.75 | 3750/3150 | 8270/6940 | 900/900 | 131/131 | 13.5 | 950 | 313 | TL |
| 315/70R22.5 | 20 | 158/150 | L(M) | 9.00 | 4000/3350 | 8820/7390 | 900/900 | 131/131 | 15.5 | 1014 | 312 | TL |
| 315/80R22.5 | 20 | 154/150 | L(M) | 9.00 | 4250/3350 | 9370/7390 | 900/900 | 131/131 | 16.8 | 1076 | 312 | TL |
