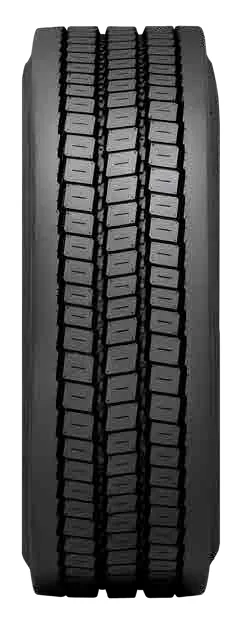

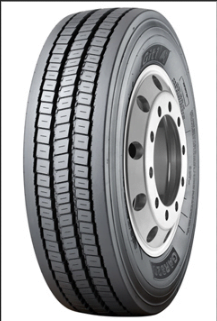

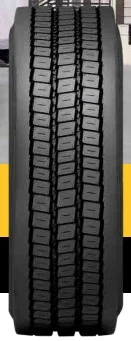

GITI GAR820 225/75R17.5 245/70R17.5

Features

  • New pattern design with wide solid shoulders
  • Optimized casing and footprint design
  • Specialized tread compound
  • Center block pattern design
  • New Improved bead construction

Specifications


Size PR Load Index Speed Rating Standard Rim Maximum Load (mm) Maximum Pressure (kPa) Tread Depth (mm) Outer Diameter (mm) Section Width (mm) TL/TT
kg lbs kPa psi
 225/75R17.5 14 129/127 M 6.75 1850/1750 4080/3860 725/725 105/105 13.0 783 226 TL
 245/70R17.5 14 136/134 M 7.50 2240/2120 4940/4675 850/850 123/123 13.5 789 248 TL
 9.5R17.5 16 143/141 K 6.75 2725/2575 6005/5675 875/875 127/127 12.5 842 240 TL
 235/75R17.5 16 132/129 J 6.75 2000/1850 4410/4079 830/830 120/120 13.5 797 233 TL
 205/75R17.5 14 124/122 M 6.00 1600/1500 3530/3305 750/750 110/110 12.5 753 204 TL
 215/75R17.5 14 128/126 M 6.00 1800/1700 3970/3750 750/750 110/110 13.0 767 211 TL
 235/75R17.5 14 132/130 M 6.75 2000/1900 4410/4190 760/760 110/110 13.5 767 233 TL
