TNR > Radial-OTR > HILO B01NL+ 17.5R25 20.5R25 23.5R25 26.5R25 L3

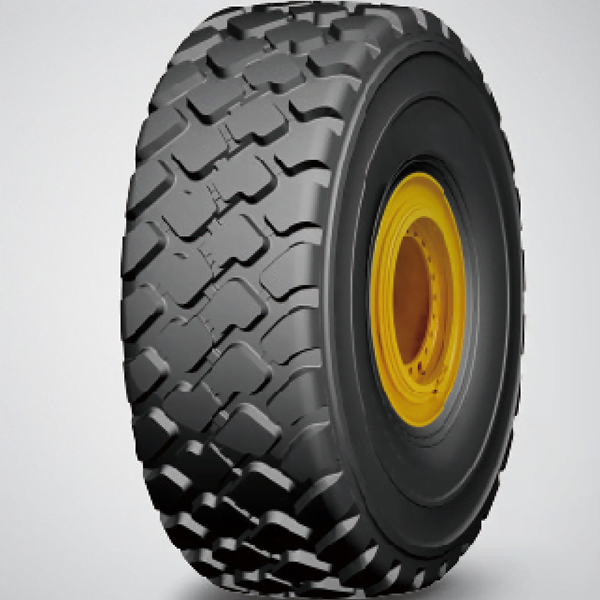

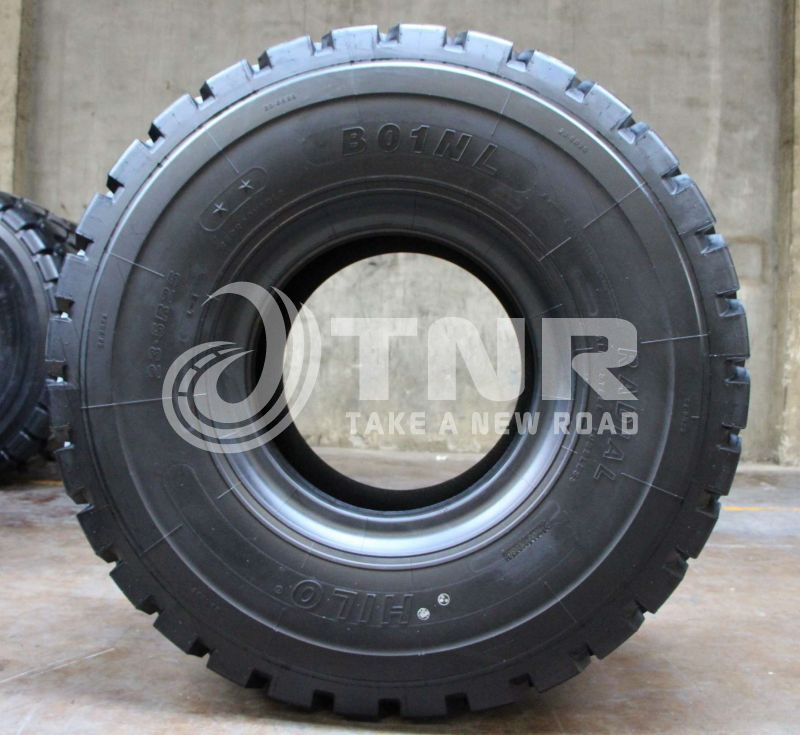

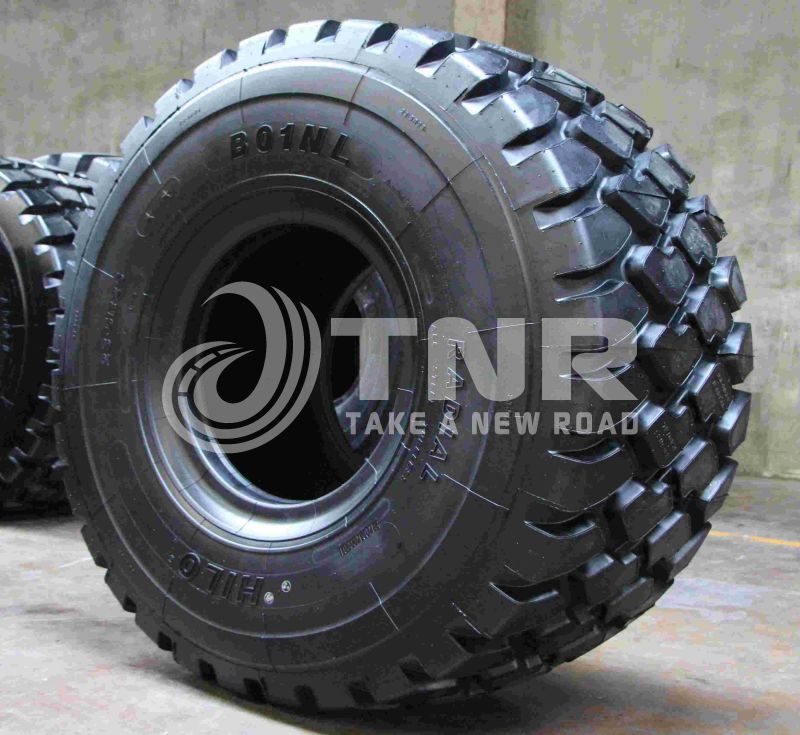

HILO B01NL+ 17.5R25 20.5R25 23.5R25 26.5R25 L3

Features

B01NL+ • Exceptionally robust in masacre conditions. • Excellent compromise of adhesion and traction. • Very substantial, wide and aggressive tread functions. • Resistant to shock ruptures, cuts and tread tearing. • A particularly resilient casing with the addition of several specific steel belts.

Specifications

B01NL+ Specifications

SIZE	STAR RATING	LOAD INDEX	TRA CODE	TREAD DEPTH	TYPE	Standard Rim (Rim Width &Flange)	DIAMETER	SECTION WIDTH	Max Load	STANDER PRESSURE	MAX SPEED
SIZE	STAR RATING	LOAD INDEX	TRA CODE	(mm)	TYPE	Standard Rim (Rim Width &Flange)	(mm)	(mm)	(kg)	(kpa)	(Km/h)
17.5R25	★★	182	L-3	28	TL	14.00/1.5	1340	445	8500	650	10
20.5R25	★★	193	L-3	31	TL	17.00/2.0	1491	521	11500	650	10
23.5R25	★★	201	L-3	34	TL	19.50/2.5	1617	598	14500	650	10
26.5R25	★★	209	L-3	37	TL	22.00/3.0	1750	675	18500	650	10

Description

B01NL+ fitting to OTR
