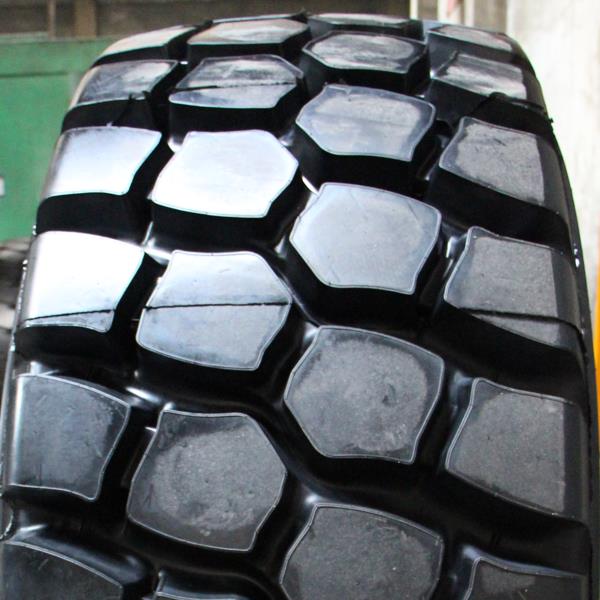

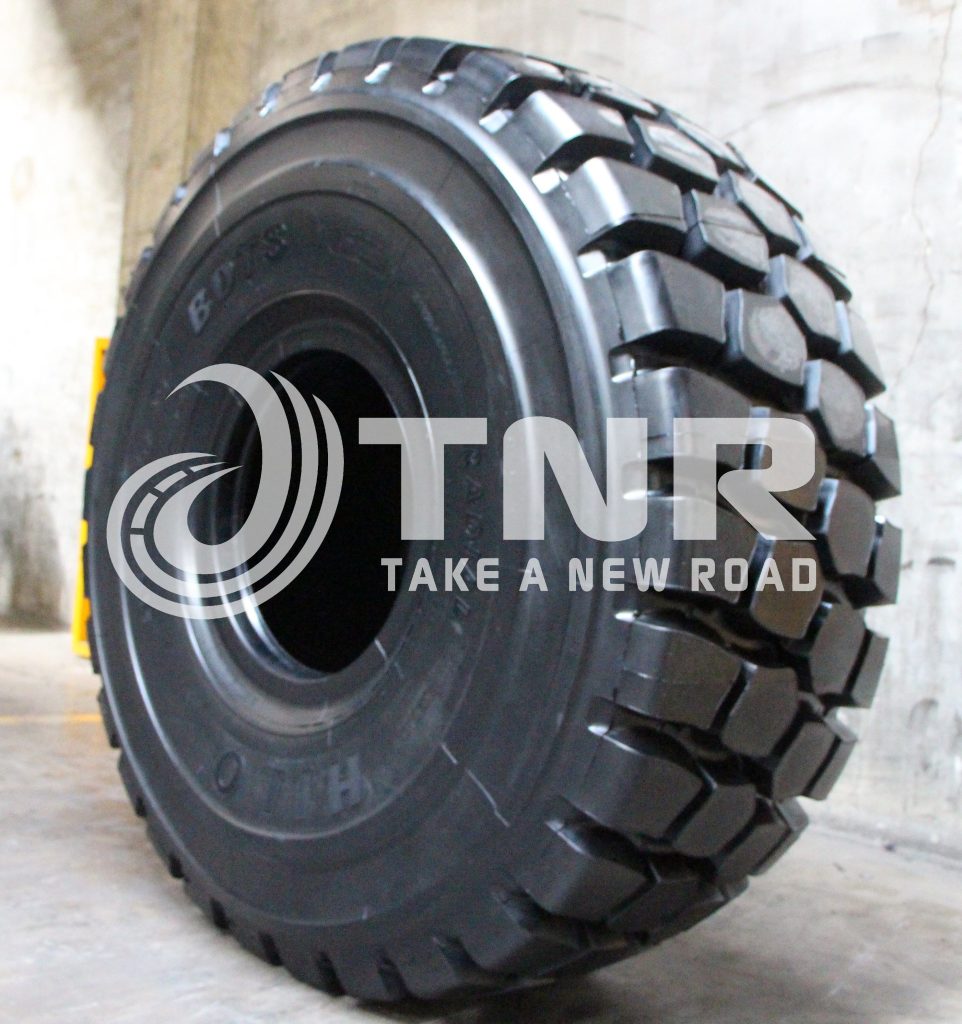

HILO BDTS/BDTS2 E4 23.5R25 26.5R25 29.5R25
Features
BDTS/BDTS2
Superior riding comfort.
Optimum traction and self-cleaning.
Exceptional stability.
Three different compounds C1,R1,CS, for diverse working condition.
| SIZE | Star RATING | LOAD INDEX | TRA CODE | TREAD DEPTH (mm) | TYPE | Standard Rim (Rim Width &Flange) | Diameter (mm) | SECTION WIDTH (mm) | max Load (kg) | Standard PRESSURE (bar) | MAX SPEED (Km/h) |
| 23.5R25 | ★★ | 185 | E-4 | 48 | TL | 19.50/2.5 | 1673 | 597 | 9250 | 5.25 | 50 |
| 26.5R25 | ★★ | 193 | E4 | 52 | TL | 22.00/3.0 | 1798 | 673 | 11500 | 5.25 | 50 |

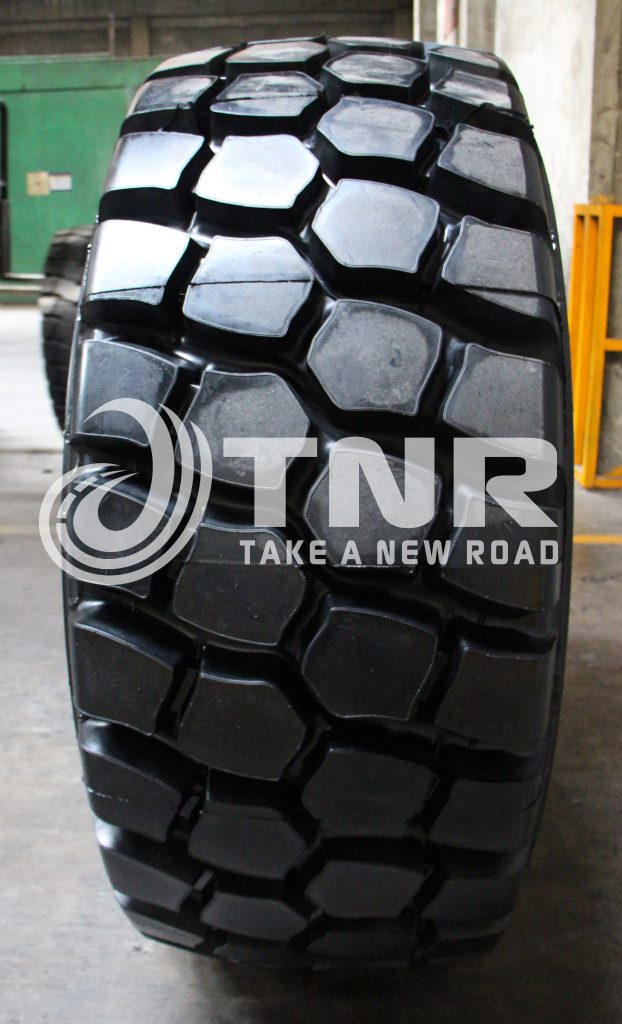

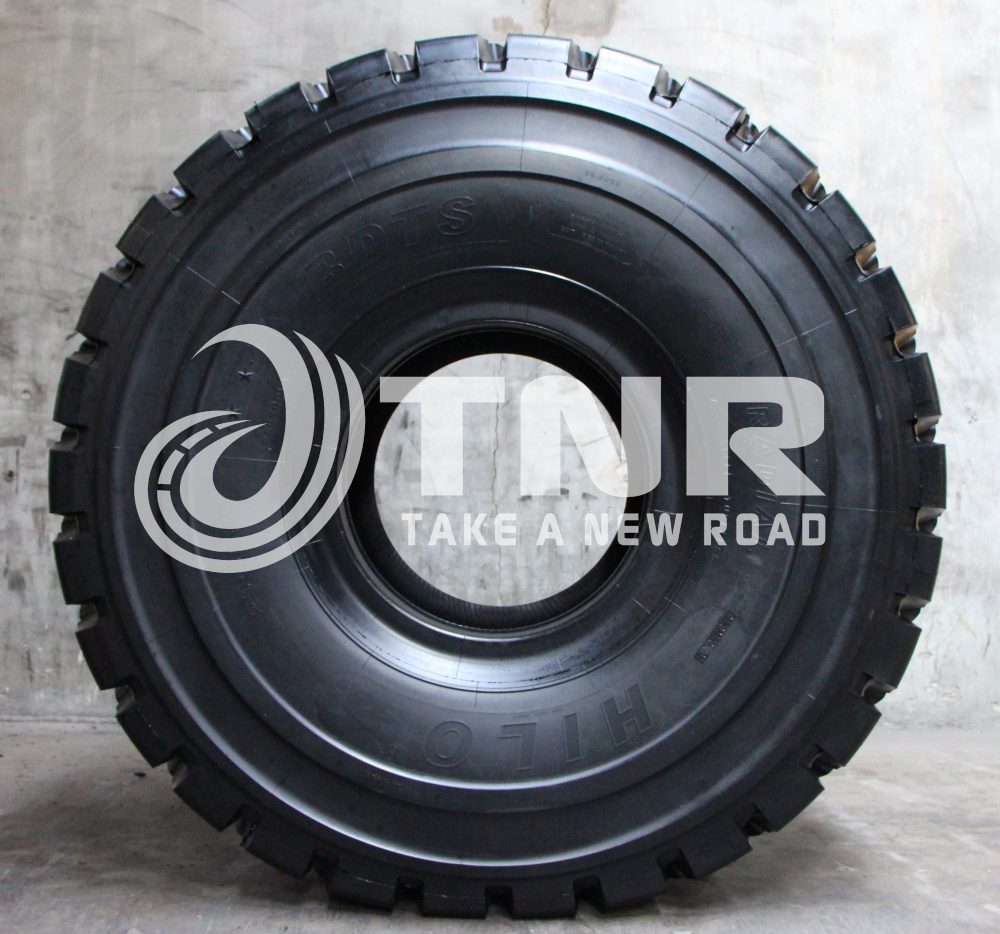

| 29.5R25 | ★★ | 200 | E-4 | 57 | TL | 25.00/3.5 | 1921 | 750 | 14000 | 5.25 | 50 |
| 29.5R29 | ★★ | 202 | E-4 | 57 | TL | 25.00/3.5 | 2023 | 750 | 15000 | 5.25 | 50 |
| 600/65R25 | ★★ | 187/178 | L-3/E-3 | 35.5 | TL | 19.50/2.5 | 1395 | 610 | 9750/7500 | 4.75 | 10/50 |
| 650/65R25 | ★★ | 193/180 | L-3/E-3 | 38.5 | TL | 19.50/2.5 | 1475 | 640 | 11500/8000 | 4.75 | 10/50 |
| 750/65R25 | ★★ | 202/190 | L-3/E-3 | 44.5 | TL | 24.00/3.0 | 1590 | 73.5 | 15000/10600 | 4.75 | 10/50 |
| 875/65R29 | ★★ | 214/203 | L-3/E-3 | 52.5 | TL | 28.00/3.5 | 1845 | 900 | 21200/15500 | 4.75 | 10/50 |
| 875/65R29 | ★★★ | 218/213 | L-3/E-3 | 52.5 | TL | 28.00/3.5 | 1850 | 900 | 23600/20600 | 6.50 | 10/50 |

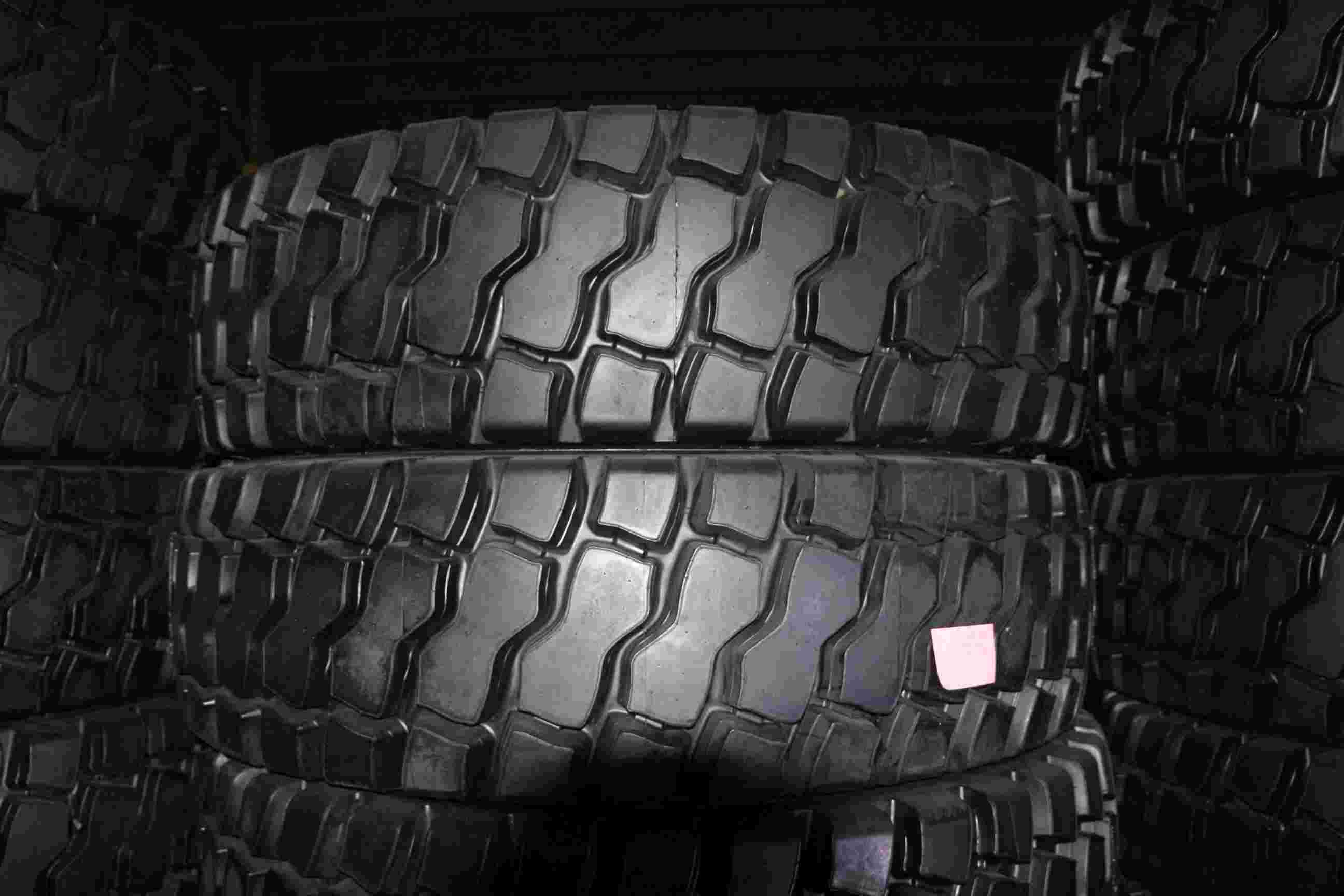

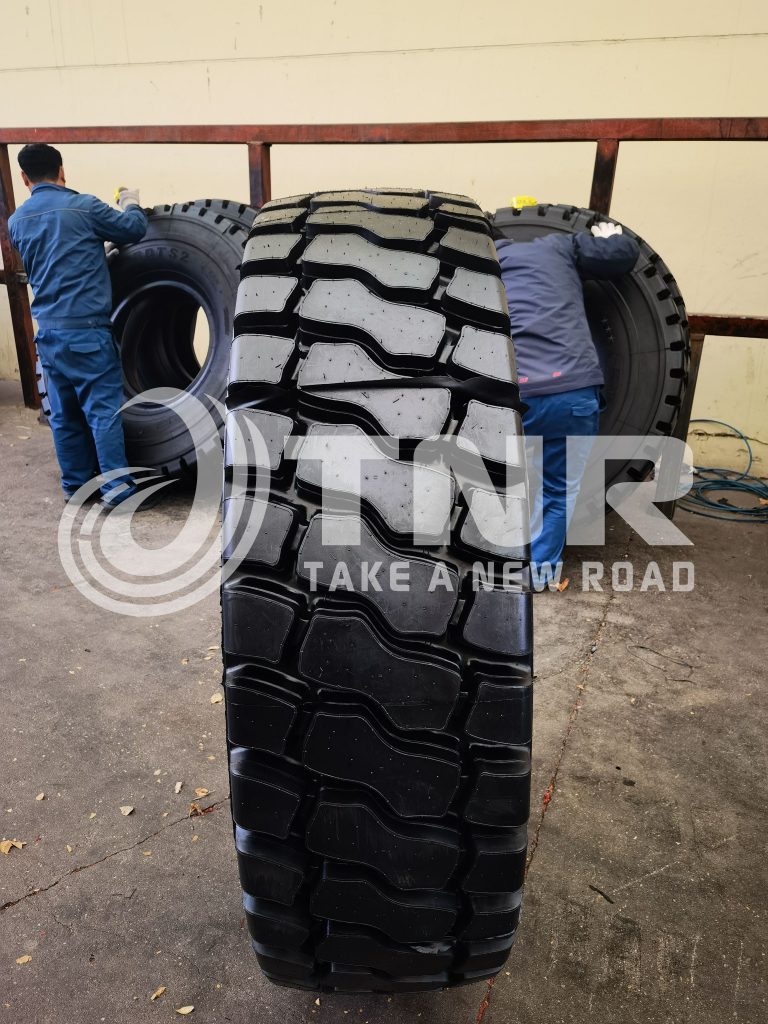

| * 16.00R25 | ★★ | 177 | E-4 | 46 | TL | 11.25/2.0 | 1532 | 448 | 7300 | 7.0 | 50 |
| Item | New Tire | HS Code | 401180 |
| Pattern Code | BDTS/BDTS2 | Brand | Hilo |
| Cord Material | Steel Wire | Quality Warrantee | 2 year |
| Tube Type | Tubeless | Delivery | Within 7 Days |
| Condition | New | Origin | Made in China |
| Natural Rubber | From Malaysia, Thailand, Indonesia etc | Certificate | DOT |
| Equipment | Imported From Japan and German | Manufactuer | Shandong Xingda Tire co., ltd |
| Machine Type | MAKE | Model | Tire Size |
| Dump Truck | Bell | B40B 6X6, B40C 6X6, B40D 6X6 | 26.5R25 & 29.5R25 |
| Dump Truck | 29.5R25 | ||
| Dump Truck | 29.5R25 | ||
| Dump Truck | Caterpillar | 730D, 740 Ejector, 740, D400E AT, D400E Ejector, 980G Series2, 980G, 611, 615C 11, 980G Series2 | 29.5R25 |
| Dump Truck | 29.5R25 | ||
| Dump Truck | 29.5R25 | ||
| Dump Truck | 29.5R25 | ||
| Dump Truck | 29.5R25 | ||
| Loader & Dozer | 29.5R25 & 29.5-25 | ||
| Loader & Dozer | 29.5R25 | ||
| Scraper | 26.5R25 & 29.5-25 & 29.5R25 | ||
| Scraper | 26.5-25 & 26.5R25 & 29.5-25&29.5R25 | ||
| Loader & Dozer | 29.5R25 & 29.5-25 | ||
| Dump Truck | Hitachi | AH400 | 29.5R25 |
| Dump Truck | John Deere | 400D, 824J | 29.5R25 |
| Loader & Dozer | 26.5R25 & 26.5-25 & 750/65R25 & 29.5R25 | ||
| Dump Truck | Komatsu | HM400-1, WA500-3 | 29.5R25 |
| Loader & Dozer | 26.5-25 & 26.5R25 & 29.5-25 & 29.5R25 | ||
| Dump Truck | Moxy | MT40B, MT40B Series 11 | 29.5R25 |
| Dump Truck | 29.5R25 | ||
| Dump Truck | Terex | TA40, S17E, TS14F, TS14G | 29.5R25 |
| Scraper | 29.5-25 & 29.5R25 | ||
| Scraper | 29.5-25 & 29.5R25 | ||
| Scraper | 29.5-25 & 29.5R25 | ||
| Dump Truck | Volvo | A40D 6X6, L220E | 29.5R25 & 875/65R29 |
| Loader & Dozer | 29.5-25 & 29.5R25 | ||
| Dump Truck | Wagner | FB 645, Fullback 650 | 29.5R25 |
| Dump Truck | 29.5R25 | ||
| Loader & Dozer | Hyundai | HL780-3 | 29.5-25 & 29.5R25 |
| Under Ground | Tamrock | 50D | 29.5R25 |
| Loader & Dozer | Daewoo | Mega500V | 29.5-25 & 29.5R25 |
For more information on which machines are these tires fitted to, please check: tire size fitting for your equipment
