| SIZE | STAR RATING | TYPE | TYPE CODE | STANDARD RIM | TREAD DEPTHR (mm) | LOAD INDEX (mm) | SECTION WIDTH (mm) | OVERALL DIAMETER (mm) | MAX LOAD AND INFLATION PRESSURE(kg/kpa) TRA | |
| 50KM/H | 10KM/H | |||||||||
| 17.5R25 | ★★ | TL | E-3/L-3 | 14.00/1.5 | 28 | 167B/182A2 | 445 | 1348 | 5450/525 | 8500/650 |
| 20.5R25 | ★★ | TL | E-3/L-3 | 17.00/2.0 | 30 | 177B/193A2 | 521 | 1493 | 7300/525 | 11500/650 |
| 23.5R25 | ★★ | TL | E-3/L-3 | 19.5/2.5 | 31.5 | 185B/201A2 | 597 | 1617 | 9250/450 | 14500/575 |
| 23.5R25 | ★★ | TL | E-3/L-3A | 19.5/2.5 | 41 | 185B/201A2 | 597 | 1617 | 9250/525 | 14500/650 |
| 26.5R25 | ★★ | TL | E-3/L-3 | 22.00/3.0 | 36 | 193B/209A2 | 673 | 1750 | 11500/525 | 18500/650 |
| 29.5R25 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 200B/216A2 | 749 | 1874 | 14000/525 | 22400/650 |
| 29.5R29 | ★★ | TL | E-3/L-3 | 25.00/3.5 | 43 | 202B/218A2 | 749 | 1975 | 15000/525 | 23600/650 |

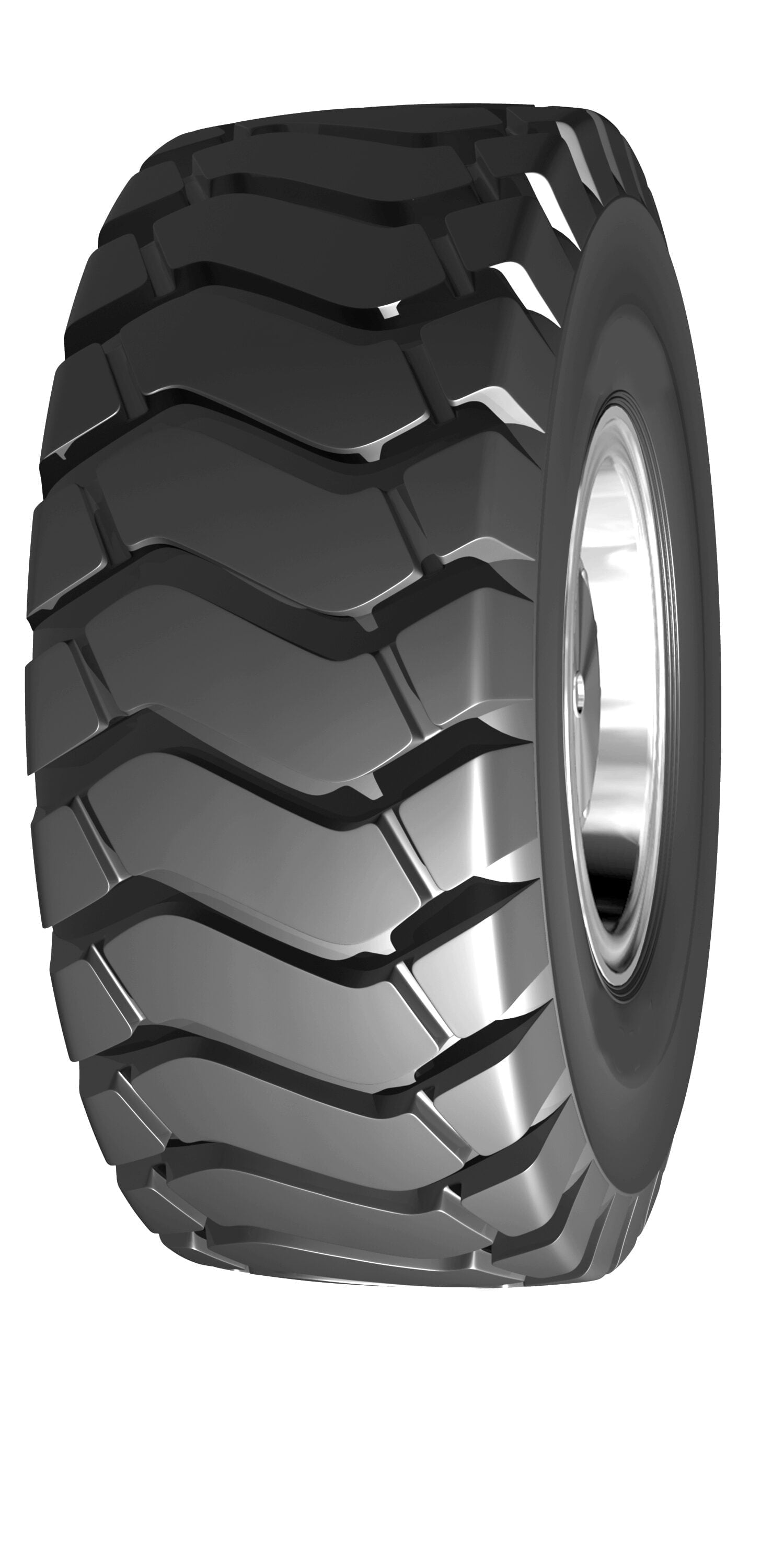

Non-directional traction and standard tread depth pattern design.
Excellent performance supported with low heating-up compound.
Primarily designed for mining, off the road and muddy surfaces
Our company is located in Shanghai, China, and has business partners all over the world.We are committed to offering On-Road & Off-Road tires/wheels, which are applied to:
– Construction Machinery (Loaders, ADT, Skid-Steering machines & Graders)
– Transportation (Trucks, Buses & Trailers)
– Agricultural/Irrigation Equipment (Tractors, Combine Harvesters & Trailers)- Forestry Machines (Harvesters, Forwarders & Skidders)
– Material Handling (Reach stackers & Forklifts)
As a professional tire/wheel supplier, we not only know well about products, but also know how to identify the right tires for your equipment.”Quality products and quality service” is our permanent commitment to our customers. Based on the requirements of the International market, we just abstract and collect a summary of popular size tires for your selection. If you cannot find some sizes, patterns or varieties, please do not hesitate to contact us.
