TNR > Bias-OTR > Haulmax S8803 50×20-20 14.00-20
  • Haulmax S8803 50×20-20 14.00-20

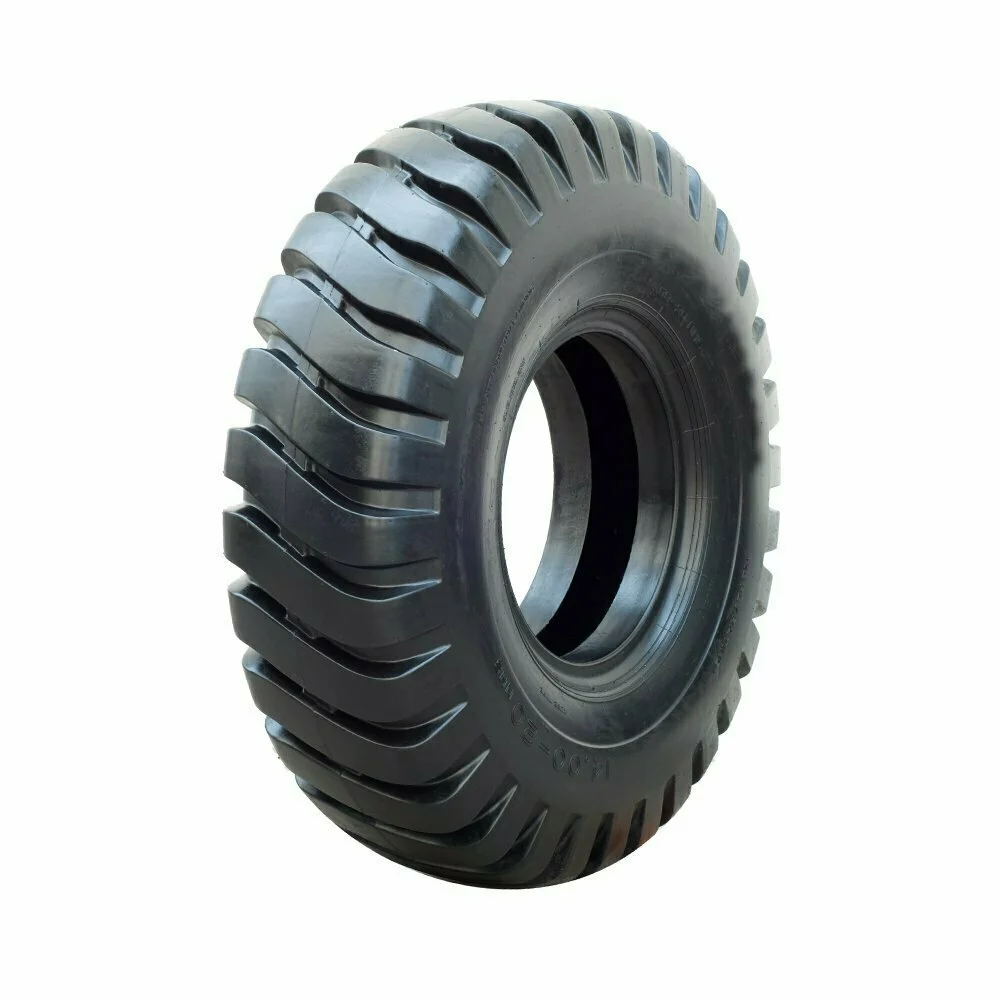

Haulmax S8803 50×20-20 14.00-20

Features

> Suitable for operation under extremely harsh rocky conditions such as mines, wells and tunnels etc. > Super-strong carcass, thickened tread, high-strength, high-hardness special tread formula, make the tires have good resistance to cutting, puncture resistance and wear resistance. > Special driving surface and pattern design, stable tire running and good passing performance.

Specifications

SIZE PR PATTERN NO. TYPE TREADDEPTH(mm) STD.RIM MAX LOAD INFLATION PRESSURE S.W.(mm) O.D.(mm)
(kg) （kPa）
50x 20-20 36 S8803 TL 33 15.00 12940 1030 495 1270
 14.00-20 32 S8803 TT 29 10.00 10025 Require Fill 375 1245
 14.00-20 28 S8803 TT 29 10.00 9250 965 375 1245
