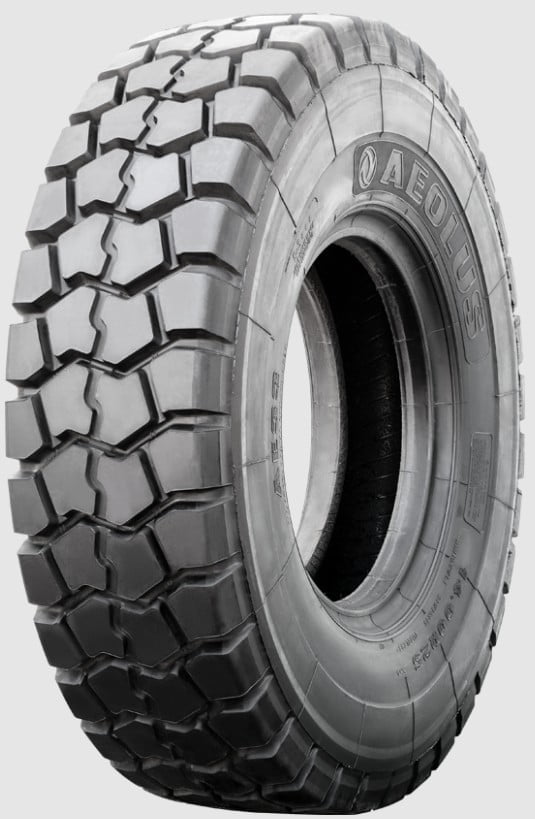

Aeolus AE33 features an aggressive, self-cleaning, non-directional tread design that delivers high traction in demanding applications such as mines and rock /sand yards. The combination of transverse and circumferential grooves provides excellent lateral traction while maintaining superior flotation characterwistics.
>Wear and cut resistant tread compound
>Aggressive, non-directional tread design
>Excellent flotation
>Superior durability and reduced cost per hour
Working conditions: Mining area soil pavement Vehicle speed: 30-50km/h Transport distance: 5-7km Wheel positions: all positions Applicable to mining dump trucks
| Code | Size | PR | LI | SS | Rim | NS | OD | SW | SLR | RC | LCC 1X | Wt. |
| in. | in. | in. | in. | in. | lbs.@psi | lbs. | ||||||
| 816738-74 | 14.00R25 | *** | 188 | A2 | 10.00/1.5 | 33 | 54.1 | 14.6 | 23.3 | 161 | 22,040@138 | 403 |
| 816891-74 | 16.00R25 | ** | 195 | A2 | 11.25/2.0 | 43 | 59.6 | 18 | 26.8 | 178 | 26,779@116 | 675 |
| Size | Pattern | Star-rating | Inflated Diamension | Max. Load (kg) | Pressure (KPa) | Load Index | Tread Depth (mm) | ||||
| SW | OD | 10km/h | 50km/h | 10km/h | 50km/h | 10km/h | 50km/h | ||||
| 14.00R25 | AE33 | *** | 370 | 1375 | 10000 | 5800 | 950 | 700 | 188A2 | 170E | 26 |
| 14.00R25 | AE35 | *** | 370 | 1356 | 10000 | 5800 | 1000 | 700 | 188A2 | 169B | 25 |
| 14.00R25 | AE310 | *** | 380 | 1356 | 10000 | 5800 | 1000 | 700 | 188A2 | 169B | 26 |
| 14.00R25 | AE401 | *** | 371 | 1397 | 10000 | 5800 | 950 | 700 | 188A2 | 169B | 36 |
Max. Load at various speed and pressure:
| max. speed (km/h) | cold pressure (kPa) | |||||
| 900 | 10000 | 1100 | 1200 | 1300 | 1350 | |
| 10 | 9200 | 10000 | 10800 | 11550 | 12350 | 12700 |
| 20 | 7800 | 8450 | 9200 | 9850 | 10450 | 10800 |
| 30 | 7550 | 8150 | 8850 | 9500 | 10050 | 10400 |
| 40 | 7300 | 7950 | / | / | / | / |
| 50 | 7100 | 7700 | / | / | / | / |
| Item | New Tire | HS Code | 401180 rubber product |
| Pattern Code | AE33 | Brand | AEOLUS |
| Cord Material | Steel Wire | Quality Warrantee | 2 year |
| Tube Type | Tube with Tube | Delivery | Within 7 Days |
| Condition | New | Origin | Made in China |
| Application | Off road,Mining and construciton | Certificate | DOT,ECE |
| Major Market | Mongolia, Canada, Vietnam, Africa | Manufactuer | AEOLUS TIRE |
| Machine Brand | Model | PART # |
| TONLY | TL87 TL875 TL98 TL85 TLD | TNR14.00R25 14.00-25 |
| Tai’an Aerospace | TAS3750 TAS3731 | TNR14.00R25 14.00-25 |
| SANY | SKT90MT | TNR14.00R25 14.00-25 |
| LGMG | MT60 MT86 MT86H | TNR14.00R25 14.00-25 |
| TONGLI | 70 90 | TNR14.00R25 14.00-25 |
| YTO | LK3550K | TNR14.00R25 14.00-25 |
| PENGXIANG | PX65MT PX65AT PX75MT PX75YQF | TNR14.00R25 14.00-25 |
| SINOTRUCK | ZZ5707S3842AJ | TNR14.00R25 14.00-25 |
Cut Resistant
Heat Resistant
Standard
14.00R25 116PCS/40HC
16.00r25 80PCS/40HC
